4.1. Service latency workflow
This drill-down workflow is designed to analyze latency in your services, which are configured using analytics labels. It includes eleven dashboards organized across four hierarchical levels, drilling down from the Services Overview dashboard to the more detailed Troubleshooting dashboards. Dashboards in this workflow can traverse up, down, and across to switch views and perspectives on the same data set. Zoom out using the browser's back button or navigate laterally to dashboards with the same level of detail but from different perspectives, such as endpoints, protocols, monitoring points, or peers. To learn more, see Navigate the workflows.

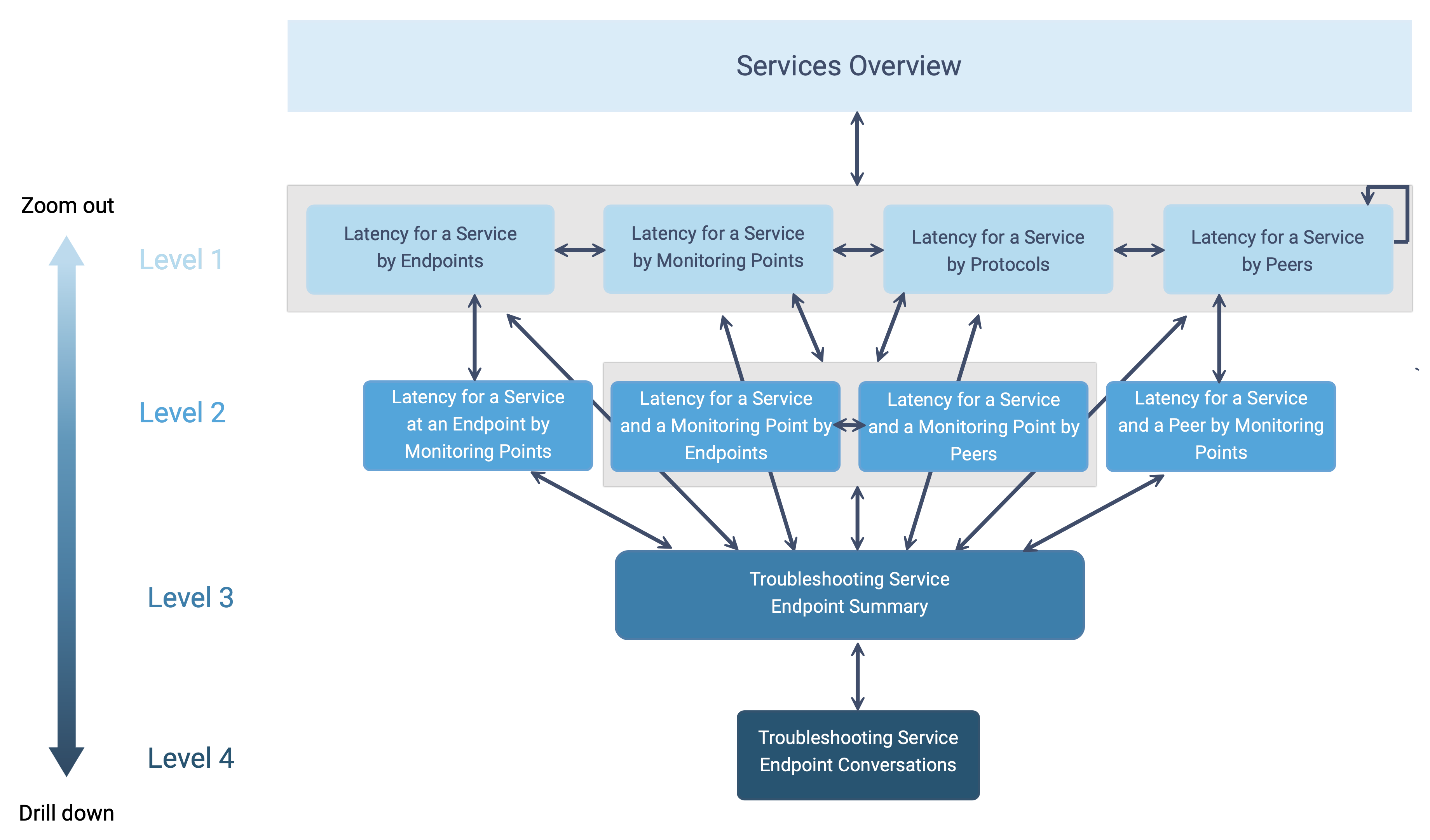

The following diagram gives you an overview of the different dashboards and their hierarchical relationship:
The following information summarizes each level of the workflow:
- Services Overview
The Services Overview is the top level of the Service Latency workflow. Here, all of your custom services that have been active for the last 24 hours are listed.
Using a time-series database, metrics such as server latency, client latency, percentage of inbound and outbound connection failures, and the total number of inbound and outbound connections for each service are visualized and analyzed in real-time. The default metric displayed is for server latency.
- Level 1
The Level 1 dashboard is designed to help determine if an individual service has a latency issue. It compares latency metrics across various aspects of the service, such as monitoring points, endpoints, protocols, and peers. The default metric displayed on the graph is server latency.
When the host acts as a server, metrics for server latency, peer client latency, and network latency are displayed. Conversely, metrics are shown for client latency, peer server latency, and peer network latency when the host acts as a client. You will see both sets of metrics if the host has acted as a server and a client.
One variable for Resolution is available at the top of the dashboard. To learn more about this variable, see Dashboard variables.
Level 1 dashboards include:
Latency for a Service by Endpoints
Latency for a Service by Monitoring Points
Latency for a Service by Protocols
Latency for a Service by Peers
- Level 2
Level 2 dashboards help narrow down the source of latency. You select a specific service and examine metrics at a distinct monitoring point, endpoint, or peer associated with that service. The same metrics are available for Level 1 and Level 2 dashboards, which focus only on latency. The default metric displayed on the graph is server latency.
When the host acts as a server, metrics for server latency, peer client latency, and network latency are displayed. Conversely, metrics are shown for client latency, peer server latency, and peer network latency when the host acts as a client. You will see both sets of metrics if the host has acted as a server and a client.
One variable for Resolution is available at the top of the dashboard. To learn more about this variable, see Dashboard variables.
Level 2 dashboards include:
Latency for a Service at an Endpoint by Monitoring Points
Latency for a Service at a Monitoring Point by Endpoints
Latency for a Service at a Monitoring Point by Peers
Latency for a Service with a Peer by Monitoring Points
- Level 3
The Level 3 dashboard, Troubleshooting Service (Endpoint Summary), is used to troubleshoot latency issues for a service at specific endpoints. If the IP address is known, you can start troubleshooting directly from this dashboard. As a starting point, it provides various metrics such as throughput Tx, throughput Rx, bytes Tx, packets Tx, packets Rx, bytes Rx, maximum flows Tx, maximum flows Rx, and server latency. The default metric displayed is on the graph is throughput Tx. Additional metrics are grouped to help troubleshoot different types of observed issues. To learn more, see Metrics for advanced analysis.
Four variables are available at the top of the dashboard: Endpoint, Service, cStor, and Resolution. To learn more about these variables, see Dashboard variables.
PCAP files can be downloaded for a particular endpoint from the cStor Download tag or a specified range using the cPacket Capture panel. To learn more, see Capture packet data.
- Level 4
The level 4 dashboard, Troubleshooting Service (Endpoint Conversations), is utilized for advanced and targeted analysis of a specific data point or narrow time range. An on-demand fetch of the analytics is always required using the cPacket Analytics panel. To learn more, see On-demand analytics collection.
Six variables are available at the top of the dashboard: Endpoint, Peer, Service, cStor, Resolution, and Include Excluded Services. To learn more about these variables, see Dashboard variables.
See Level 3 for metric and packet capture information.
