Observability User Guide

Import the dashboards from Grafana

Note

If a dashboard from the cPacket Utility Bundle Plugin is imported, it overwrites the previous version of that dashboard. During the plugin update process, if there are specific dashboards you want to keep unchanged, uncheck the corresponding boxes. This will prevent those dashboards from being overwritten by the update.

  1. Go to Observability > Show quick start menu and click Import dashboards.

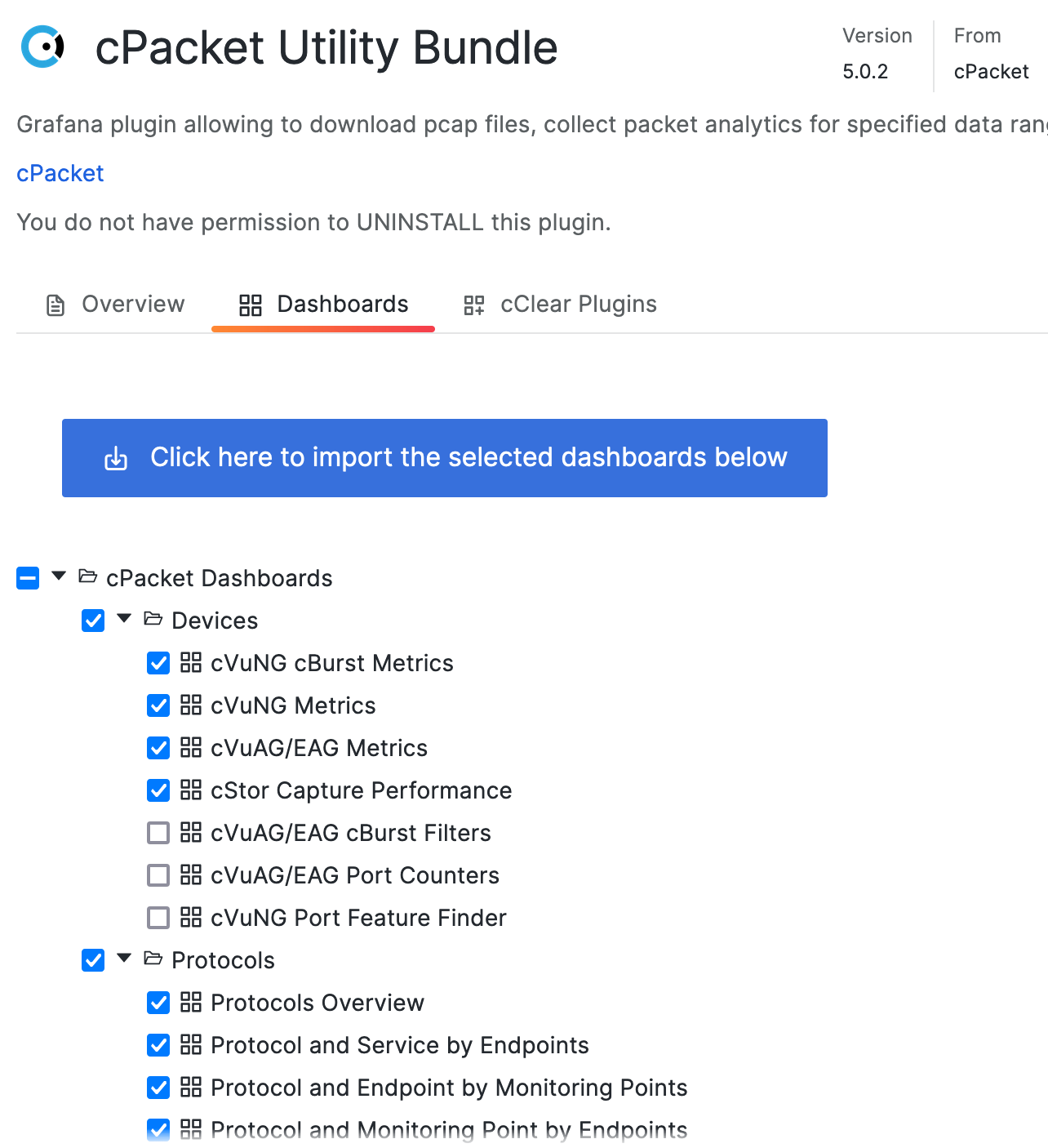

  2. A new tab will open in the current browser. The cPacket Utility Bundle plugin is displayed. Click Click here to import the selected dashboards below to import the pre-selected list of dashboards. To import other dashboards, select the checkbox next to each dashboard or folder.


The dashboards are now available to use in Grafana, and the Observability home page dashboard links are active.
